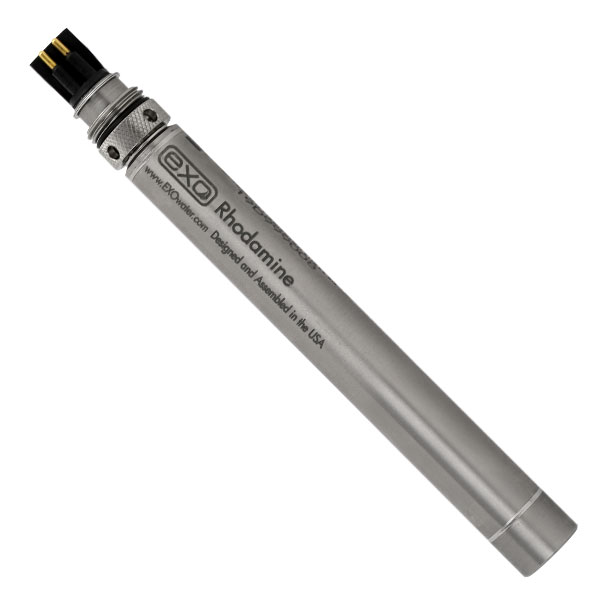

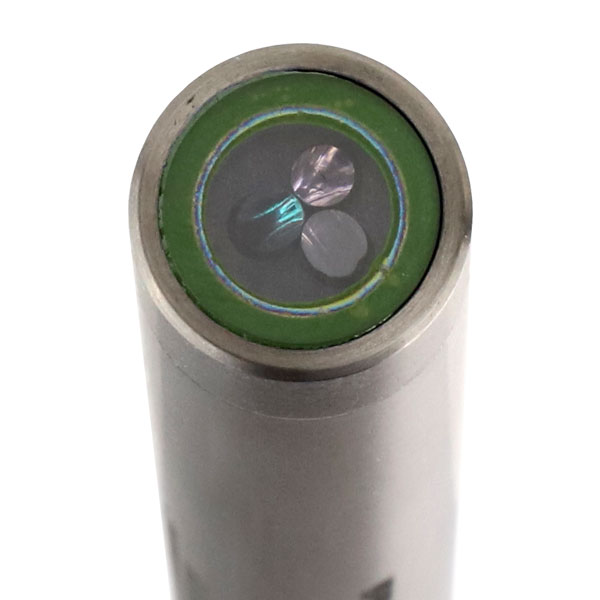

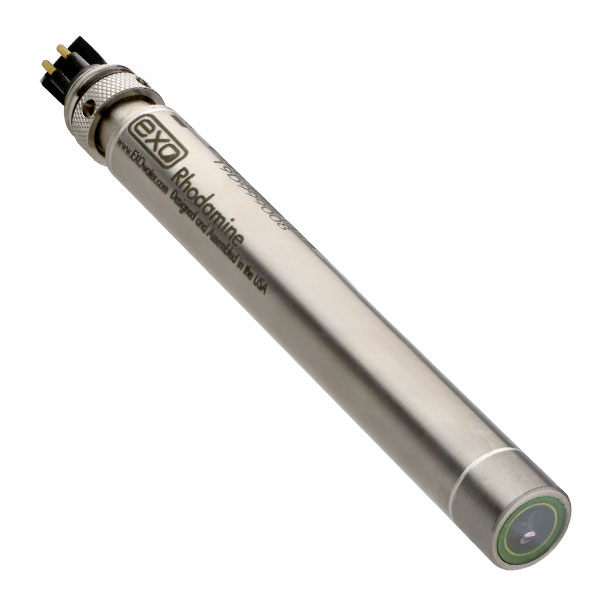

EXO Rhodamine Sensor

The EXO Rhodamine sensor provides accurate, in situ measurement of Rhodamine WT in fresh, brackish, sea water, groundwater, stormwater, and wastewater.

This sensor must be installed into an EXO Sonde to function. Does not function on its own.

• Overview

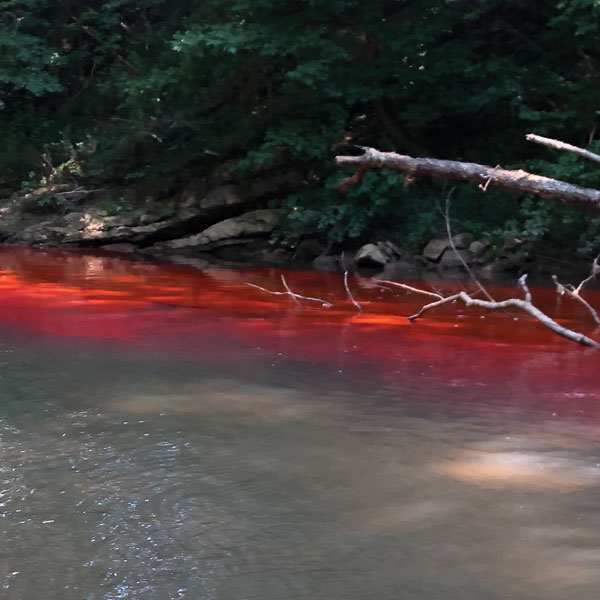

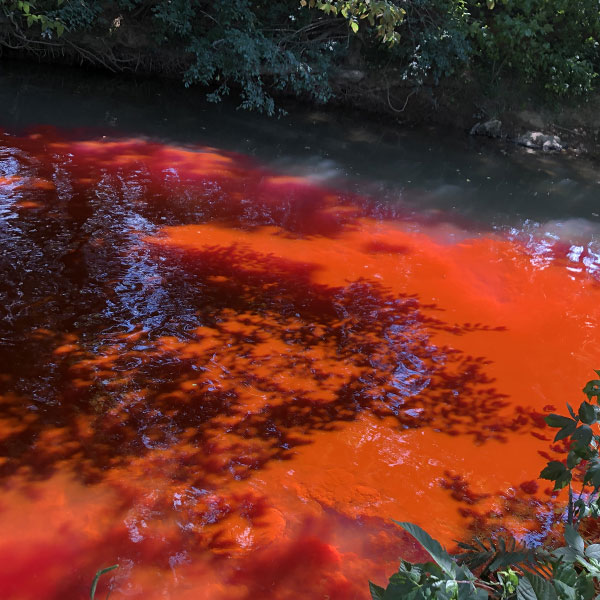

  Rhodamine WT is commonly selected for dye tracer studies due to its ease of use, low adsorptive tendency, strong fluorescence, and negligible environmental impact. Offering the widest detection range with the most sensitive detection limit, the EXO Rhodamine sensor is ideal for monitoring the movement of water as well as dispersion and mixing characteristics.

  Suitable for a variety of applications:

  • Time-of-travel (TOT) studies
  • Hydraulic characterization
  • Mixing zone identification
  • Pollution plume tracing
  • Spill mapping

  Notable Specifications:

  Range: 0 to 1,000 µg/L or 0 to 100 RFU

  Resolution: 0.01 µg/L or 0.01 RFU

  Accuracy: +/- 5% or 0.1 µg/L w.i.g

  Compact and Accurate
  The EXO platform offers a completely new approach - highly accurate, quick-response sensors in a small, easy-to-deploy and easy-to-maintain package. Gone are large and complicated sensor arrangements requiring complex integration.

  Smart Probes
  All EXO sensors have onboard memory and processing, allowing users to easily calibrate and configure sensors at one location and distribute to various field sites.

  Smart Ports
  Wet-mateable connectors allow for swaps in wet conditions, while the smart ports shut down any excessive current draws to prevent damage.

• Specifications

  Accuracy	+/- 5% or 0.1 µg/L w.i.g
  Depth Rating	250m
  Linearity	R²>0.999
  Measurement Range	0 to 1,000 µg/L or 0 to 100 RFU
  Minimum Detection Limit	0.01 µg/L
  Operating Temperature	-5 to 50°C
  Resolution	0.01 µg/L or 0.01 RFU
  Storage Temperature	-20 to 80°C
  Unit of Measure	µg/L, ppb, RFU
  User Calibratable	4-point calibration
  Warranty	2 years

• Accessories



  EXO1 Multiparameter Sonde

  4-port Multiparameter Water Quality Sonde



  EXO2 Multiparameter Sonde

  7-Port Multiparameter Water Quality Sonde



  EXO3 Multiparameter Sonde

  5-port Multiparameter Water Quality Sonde



  EXO Tool Kit

  Replacement Tool Kit
